Flaatz 560

  • :
    Dr Tech

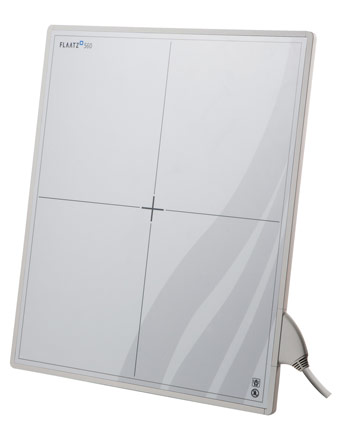

Flaatz 560

Is a revolutionary digital radiographic detector that enables you to upgrade your existing conventional X-ray system to a DR system. The detector has the same dimensions as a regular film cassette.

The Flattz 560 allows an easy switching from conventional to digital mode with the highest image quality.

Specifications:

Detector Type: flat panel digital
X ray imaging area: 42.1 x 34.4 cm
Pixel arrat resolution: 3,072 x 2560
Pixel Pitch: 139 µm
Preview Time: 5 sec approx.
Dimension:  338(W)x460(L)x15(H)mm
Weight: 3.7kg
A/D conversion dynamic range:  14 bit
X-ray energy range:  40 – 150 kVp
Power consumption: 12V, 2A maximum

Flattz 560 minimizes the costs and maximizes the performance
